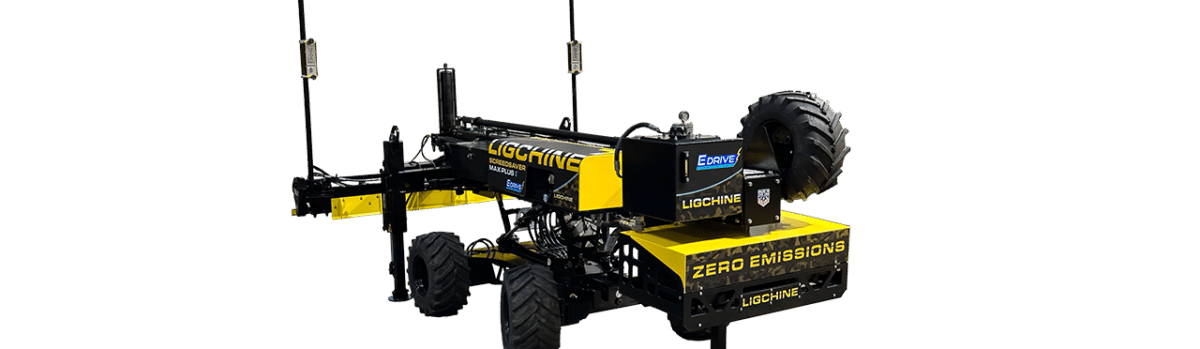

SCREEDSAVER MAX PLUS E
The new SCREEDSAVER™ MAX PLUS E builds on the success of the revolutionary SCREEDSAVER™ MAX PLUS with an industry-first 100% lithium-ion electric power system. The MAX PLUS E is equipped with EDRIVE, a 48-volt electrically driven hydraulic power unit. The MAX PLUS E features a built-in diagnostic touchscreen, revolutionary ScreedShift™ pivoting frame, Topcon® laser receivers, and Ligchine Gen 2 wireless remote control system. Now you can safely screed indoors and in climate sensitive environments with the all new MAX PLUS E!
The SCREEDSAVER MAX PLUS E
power unit
48 VOLT 3-Phase AC Liquid Cooled Electric Motor
48 VOLT LITHIUM ION BATTERY STORAGE
SCREEDSAVER MAX PLUS E Specifications
Width: 6′ 3″ | 1.9 m
Length: 15′ 10″ | 4.8 m
Height: 5′ 7″ | 1.7 m
Weight: 5,000 lbs. | 2,268 kg.
Screed Head Length: 10′ (3m)
Drive System (hydraulic): 2 Wheel Proportional Drive
Screed Coverage: 17′ (5.18m) boom extension with a 10′ (3m) High Performance screed head
ScreedShift™ Pivoting Frame: Up to 5’3”’ (1.6m) of side-to-side screed head movement with a pivoting boom member.
Electric Motor System: 48 Volt, 3-Phase, AC Liquid Cooled Electric Motor
Battery Storage: 48v Lithium Ion Battery
Leveling Systems:
• 2D Laser Leveling (Standard) for Grade, Slope, Dual Slope – Topcon LS-B110
• 3D Systems (Optional) for Contoured concrete paving – Topcon 3D mmGPS satellite control or LPS robotic.
Parallel to the Pour Driving Capable: Yes – 90° Manual Pivoting Undercarriage Drive Frame
Machine Operation Control: 100% wireless remote control – Scanreco
Transport with Pickup Truck and Trailer: Yes
