Ligchine E-Z Placer Concrete Placer and Line Dragger

E-Z Placer™ by Ligchine

Ligchine E-Z Placer Concrete Placer and Line Dragger

E-Z PLACER™ by Ligchine

Since day one, Ligchine has been laser focused on revolutionizing the concrete flatwork industry. Today marks an important step in continuing the Ligchine tradition of providing high quality products for the concrete flatwork and construction industries. We are excited for the addition of the E-Z PLACER to the Ligchine portfolio of products.

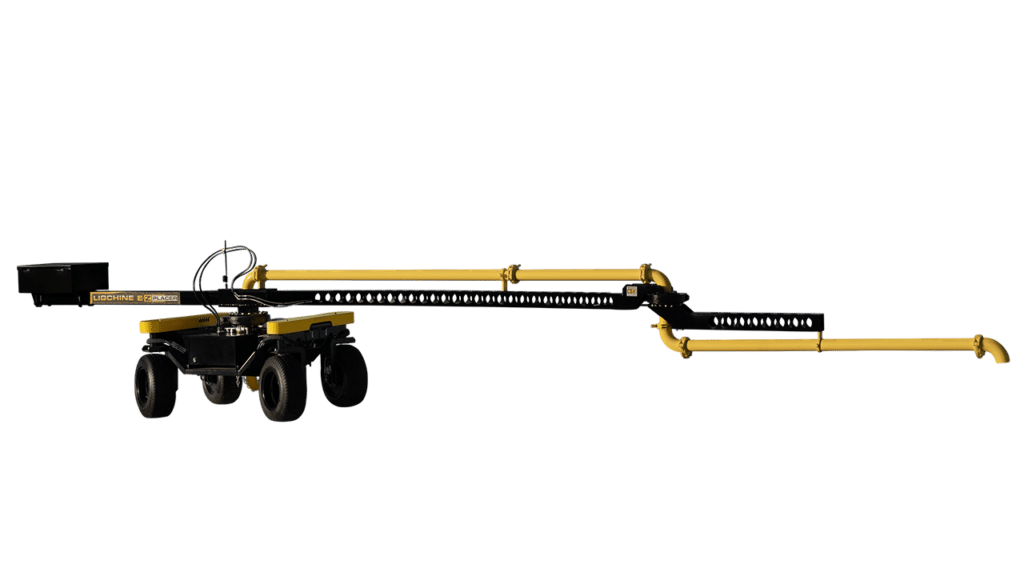

The E-Z PLACER provides a portable, easy to operate, agile solution for efficiently and safely placing concrete in line pump applications. The E-Z PLACER is a self-propelled, remote operated concrete placer and line dragger in a single, easy to transport unit.

Featuring a 27′ (8.23m) material placement reach through a 4” delivery line, this machine allows you to place material exactly where you need it, all while keeping the operator and machine out of the finishing area. Not only is this efficient, but it also provides a safer work environment. The 13 HP Honda GX390 gas engine keeps fuel consumption and noise to a minimum, while the two-section boom allows for flexible placement with unparalleled reach. The E-Z PLACER is remote operated with a full set of back up manual controls on the machine. At 60” wide and 4,000 pounds, this machine is easy to transport and maneuver on the job site.

Contact us for more information on this machine!

View the E-Z PLACER Press Release.

Ligchine E-Z Placer Concrete Placer and Line Dragger

Check out The E-Z PLACER At Work

Play Video
E-Z PLACER: The NEWEST addition to the Ligchine lineup of portable, labor saving concrete construction machines.

E-Z PLACER Specifications

Width: 5′ | 1.5 m

Length: 36′ 8″ | 11.1 m

Height: 5’6″ | 1.8 m

Weight: 4,000 lbs | 1814 kg

Boom Reach: 27′ | 8.2 m

Main Boom: 16′ | 5.3 m
360º Left to Right Swivel

Tip Boom: 11′ | 3.7 m
360º Continuous Swivel



Placement Pipe Diameter: 4″ | 10.2 cm

Line Pump Connection: Side or Rear

Drive System: All-Wheel Drive

Engine: 13HP Honda GX390, gasoline

Single Operator Control: Yes

Machine Operation Control: 100% wireless remote control, plus a full set of on-machine manual backup controls

Transport with Pickup Truck and Trailer: Yes

Machine Length When in Trailer Mode: 27′ | 8.2 m
