SCREEDSAVER™ PRO PLUS
Introducing the Ligchine SCREEDSAVER® PRO PLUS. The PRO PLUS is the culmination
of 15 years of experience building laser guided screeds. Taking advantage of frame
leveling technology that makes achieving FF/FL specifications not only possible but
repeatable on a daily basis. The PRO PLUS has SCREEDSHIFT™ technology that was first
developed on the MAX PLUS allowing the operator to move the screed head around
obstacles and penetrations without rotating the head. The PRO PLUS also utilizes a
rotating undercarriage for versatility and speed when operating in smaller or congested
areas. With an increased auger size, longer boom reach and wider head, the PRO PLUS
is highly productive in all applications from warehouse floors to exterior multiple slope
pavements. All these features are achieved while keeping the size and weight of the
machine compact, providing the ability to transport the machine with a ¾ ton truck
and trailer.
SCREEDSAVER PRO PLUS Specifications
Width: 5′ 10″ | 1.8 m
Length with Head: 16′ | 4.9 m
Height: 8‘ | 2.4 m
Weight: 9,180 lbs (4,164 kg) + screedhead
Fuel Tank: 8 gallons
Water Tank (Sprayer): 20 gallons
Screed Head: 11′ (3.4 m) High Performance
Drive System (hydraulic): 2-Wheel Proportional Drive
Coverage per Screed Pass: 200 sq ft (18.6 sq m)
ScreedShift™ Pivoting Frame: 12º of side-to-side screed head movement with a pivoting boom
Engine: Yanmar 3TNV88C-DSA 36.9 HP (27.5 kW) Diesel
Leveling Systems:
• 2D Laser Leveling (Standard) for Grade, Slope, Dual Slope – Topcon LS-B200
• 3D Systems (Optional) for Contoured concrete paving – 3D LPS robotic.
Parallel to the Pour Driving Capable: Yes – 360° Hydraulic Pivoting Undercarriage Drive Frame
Machine Operation Control: Wireless Remote Control

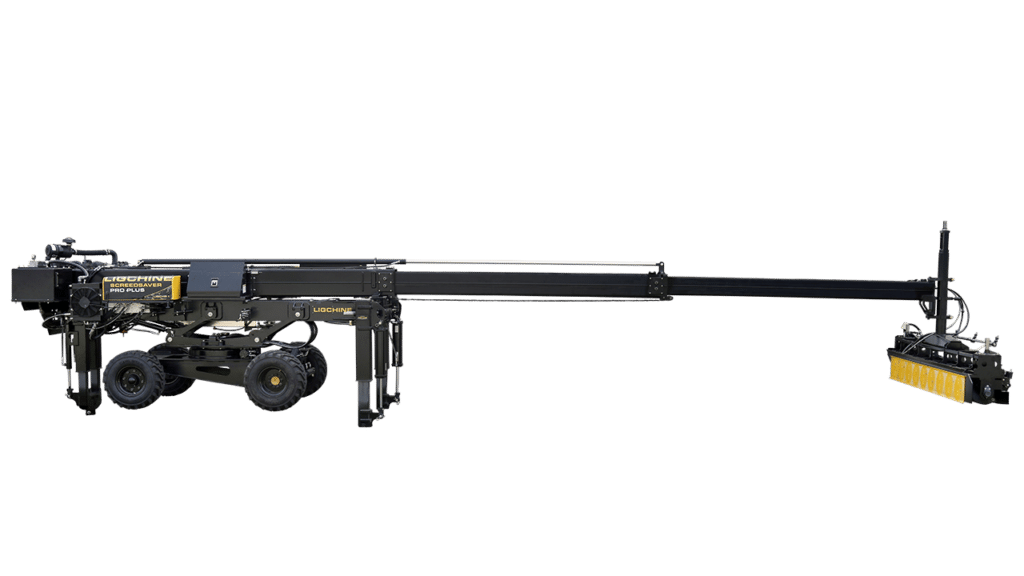

Pre-production model shown, specifications subject to change.
